The 10 kW-class single-mode fiber laser source series boasts high power and near-single-mode output as its key strengths. Built on a cascade-pumping technology platform, it effectively addresses key industry challenges such as controlling nonlinear effects in stable 1018 nm pump laser output, maintaining mode stability, and achieving high pump absorption efficiency. With its reliable 10 kW-class single-mode fiber laser source output, this series delivers outstanding laser solutions for research, security, and precision processing applications.

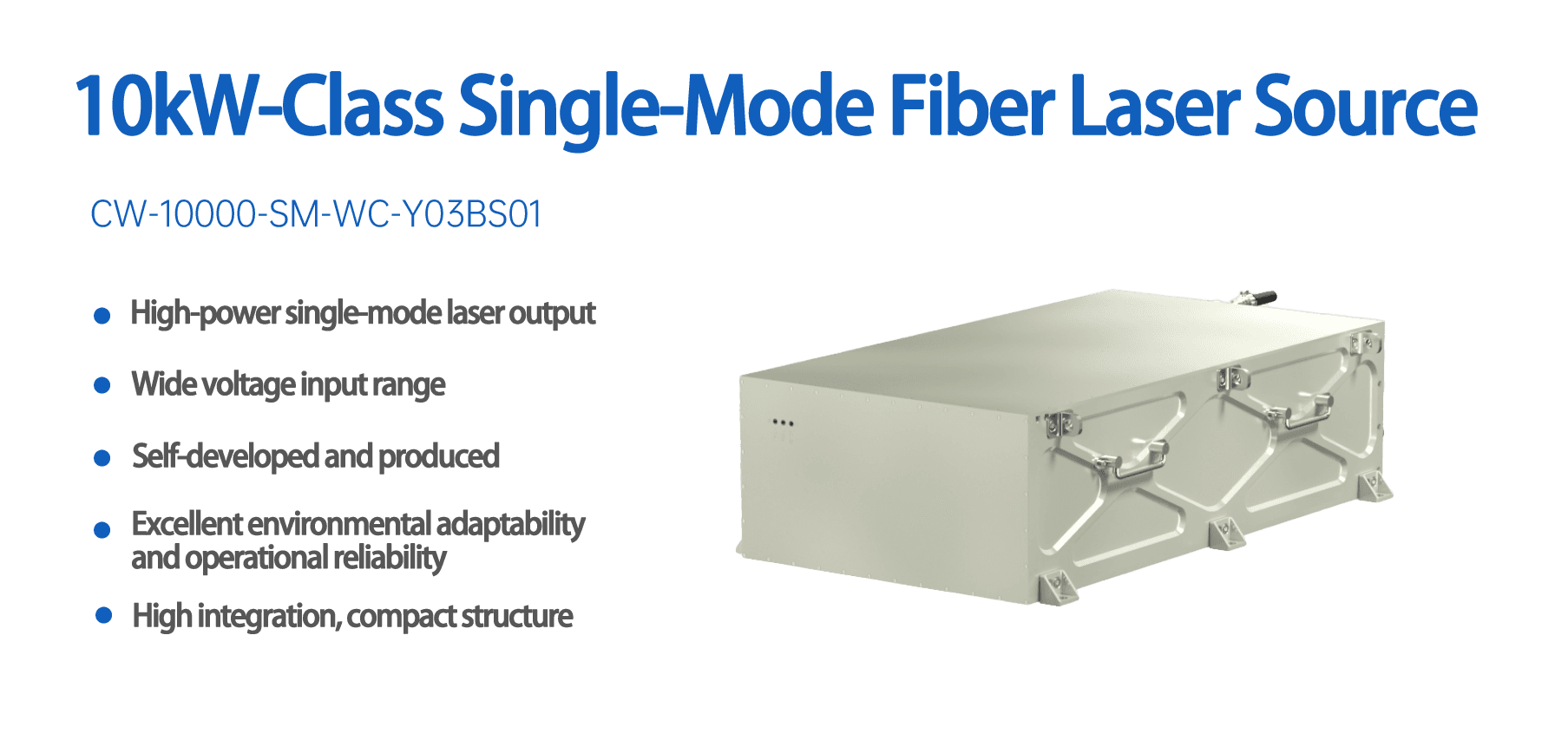

10kW-Class Single-Mode Fiber Laser Source
Technical Requirements | Parameters | Remarks |
| General Characteristics | ||
Operating mode | Continuous | - |
Output power | ≥12000W | - |
Center wavelength | 1080±10nm | - |
Output power instability | ≤4% | - |
Red light power | 0.3~1mW | - |
Beam quality | M2≤1.6 | - |
| Working voltage | 190-370VDC | - |
| Input power | ≤38kW | - |
Product size | ≤950mmx520mmx271mm | LxWxH |
Product weight | ≤100kg | - |
| Coolant temperature | 23~27℃ | - |
| Flow rate | ≥70 L/Min | - |
| Environmental Adaptability | ||
Operating temperature | -30℃ ~ +60℃ | - |
Storage temperature | -40℃ ~ +70℃ | - |

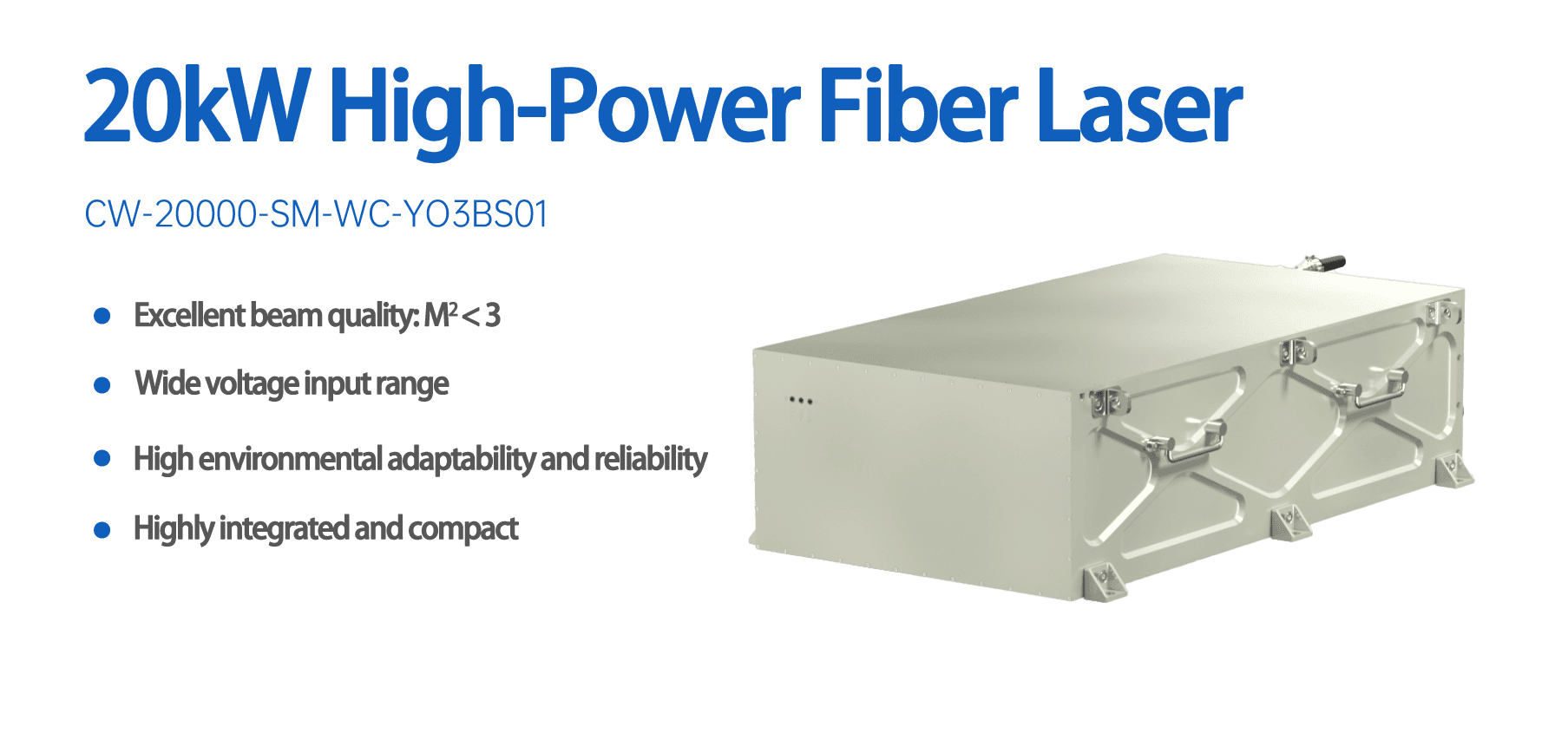

20kW High-Power Fiber Laser
Technical Requirements | Parameters | Remarks |
| General Characteristics | ||
Operating mode | Continuous | - |
Output power | ≥20000W | - |
Center wavelength | 1080±10nm | - |
Output power instability | ≤4% | - |
Red light power | 0.3~1mW | - |
Beam quality | M2≤3 | - |
| Working voltage | 190-370VDC | - |
| Input power | ≤65kW | - |
Product size | ≤960mmx680mmx360mm | LxWxH |
Product weight | ≤180kg | - |
| Coolant temperature | 23~27℃ | - |
| Flow rate | ≥130 L/Min | - |
| Environmental Adaptability | ||
Operating temperature | -30℃ ~ +60℃ | - |
Storage temperature | -40℃ ~ +70℃ | - |
